Thermal Insulation: Thermal Break Aluminum vs UPVC Windows

In modern construction, the thermal insulation performance of windows and doors is a key factor in improving indoor comfort and energy efficiency. This is especially important in regions with significant temperature differences, where the performance of windows can impact indoor temperature stability, energy consumption, and overall building comfort. This article compares the thermal insulation performance of thermal break aluminum alloy windows and UPVC windows from the perspective of thermal insulation effects, material characteristics, real-world applications, and data support.

1. Comparison of Thermal Insulation Principles

1. Thermal Break Aluminum Alloy Windows
   Thermal break aluminum alloy windows use a "thermal break" design, where a layer of thermal insulation material (such as polyurethane or nylon) is inserted between the inner and outer aluminum alloy frames. This design breaks the thermal conductivity path through the aluminum, significantly reducing the transfer of heat across the frame.

2. UPVC Windows
   UPVC (Unplasticized Polyvinyl Chloride) windows are made of  rigid plastic, which itself has good thermal insulation properties. These windows usually feature thick frames and multi-chamber structures, relying on air gaps to enhance thermal insulation.

2. Comparison of Thermal Insulation Performance

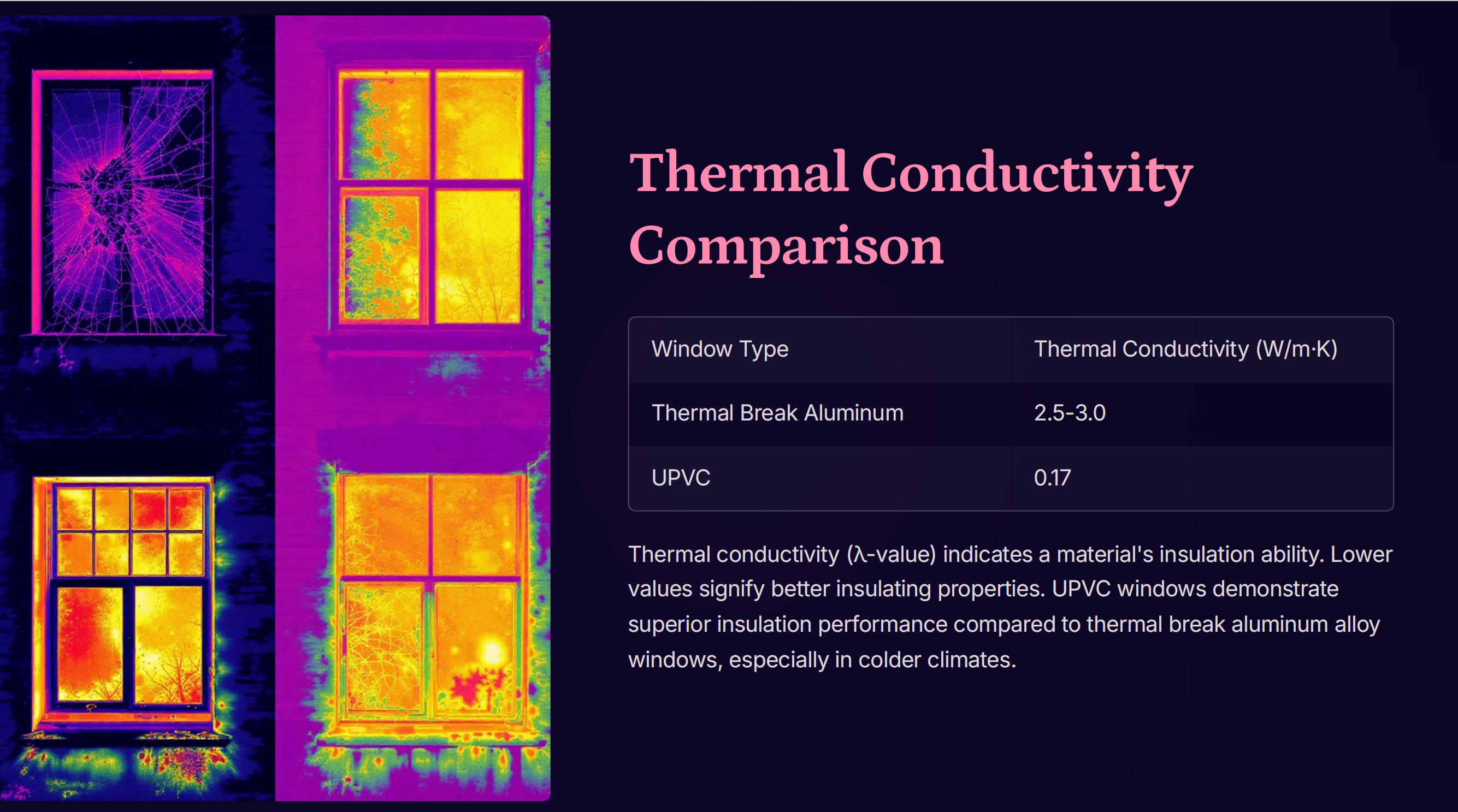

1. Thermal Conductivity (λ-value)
   Thermal conductivity (λ-value) is an important indicator of a material's insulation ability. The lower the value, the better the material’s insulating properties.

• Thermal Break Aluminum Alloy Windows: Due to the insulating material inserted between the inner and outer frames, the thermal conductivity of thermal break aluminum alloy windows is typically in the range of 2.5-3.0 W/m·K. This means that while it has better insulation compared to regular aluminum alloy windows, its thermal insulation performance is still inferior to that of UPVC.

• UPVC Windows: The thermal conductivity of UPVC is much lower, typically around 0.17 W/m·K. This gives UPVC windows a natural advantage in thermal insulation, especially in colder climates, as it effectively reduces heat loss and temperature fluctuation inside the building.




1. Frame Temperature Difference
   Under the same environmental conditions, the internal frame temperature of thermal break aluminum alloy windows will still be significantly lower than that of UPVC windows. For example, in an external temperature of 0°C, the inner frame temperature of a thermal break aluminum alloy window could remain around 5°C, while UPVC windows typically maintain an inner frame temperature close to room temperature (18-20°C).




2. U-value (Thermal Transmittance)
   The U-value is a measure of the window's overall heat transfer efficiency—lower U-values indicate better insulation.

• Thermal Break Aluminum Alloy Windows: The U-value typically ranges from 1.7-2.5 W/m²·K, depending on the thickness and material of the thermal break.

• UPVC Windows: The U-value of UPVC windows generally ranges from 1.2-1.8 W/m²·K, making them more thermally efficient than thermal break aluminum alloy windows in comparable conditions.

3. Real-World Applications

1. Thermal Resistance in Extreme Conditions
   UPVC windows are generally more resilient in extreme temperature conditions. In cold winters, they effectively minimize heat loss, making indoor temperatures more stable. In contrast, thermal break aluminum alloy windows, despite their thermal break design, are still more susceptible to heat transfer due to the inherent conductivity of aluminum.

2. Climate Adaptability
   UPVC windows perform more consistently in both hot and cold climates, maintaining their insulation properties over time. Thermal break aluminum alloy windows, while offering better performance than regular aluminum, can still be affected by external temperature changes. Aluminum’s thermal expansion in high temperatures can potentially compromise the window's sealing and thermal efficiency.

3. Service Life
   UPVC material is highly resistant to aging, meaning it maintains its thermal insulation properties over a long period without warping or degrading. On the other hand, thermal break aluminum alloy windows, although durable, can experience reduced thermal performance if the thermal break material degrades or becomes damaged over time.

4. Summary and Recommendations

In terms of thermal insulation performance, UPVC windows generally outperform thermal break aluminum alloy windows. UPVC’s low thermal conductivity and efficient insulation design make it a better option for buildings in need of high thermal performance, particularly in colder climates. However, thermal break aluminum alloy windows have their advantages in terms of aesthetics and durability, making them a good choice for projects where both appearance and functionality are important.

If thermal insulation is a priority, particularly in regions with extreme temperatures, UPVC windows are the better choice. For applications where design and visual appeal are important, and moderate insulation is sufficient, thermal break aluminum alloy windows may be more suitable.

Data Reference

Based on this data, it is clear that UPVC windows provide superior thermal insulation performance compared to thermal break aluminum alloy windows, making them ideal for energy-efficient buildings and environments where temperature control is crucial.
